Purchase Reckless Motorcycles Batwing Fairing with Stereo for Road King

SKU: RKL-HDFATSSDD
MPN: HDFATSSDD
Reckless Motorcycles Batwing Fairing with Stereo for Road King

Name: Reckless Motorcycles Batwing Fairing with Stereo for Road King
Brand: Reckless Motorcycles
SKU: RKL-HDFATSSDD
Price: 949 USD
Availability: InStock

$949.00

Shipping: $49.00

Custom Made for you. Ships in 1-3 weeks

Fill Bike Year:

Select Stereo:

Select Speaker Style:

Select Color:

Select Windscreen Size & Color:

Select Front:

Select Amplifier:

Optional Handlebar Remote Control:

Select Windscreen Trim:

Tri-Pouch:

Select Wind Deflectors:

Select Smartphone Holder:

Optional Klock Werks Flare Windshield:

Rear View Mirror:

Qty

Features

Hand Laid Fiberglass Batwing Fairing
Fairing Arrives in Black Gelcoat
Mounting Hardware Included (Details Below)
Acrylic Windshield: Clear/Tinted (5"/ 10")
Radio Antenna: AM / FM Radio (Preinstalled)
Bluetooth / Radio / USB Port / AUX
Wind and Weather Protection
Wiring Harness for Power (Preinstalled)
Water-Proof Stereo Face
12v Power Outlet
Double Rubber Sealed Edges
Lower Noise and Wind Buffeting
Detachable Outer and Inner Fairing
Excellent Quality Hand Laid Fiberglass
5 Year Warranty on Fairing
1 Year Warranty on Electronics
Fully Assembled with Mounting Instructions
Made in the USA

Your Choice of Stereo Unit

Infinity Bluetooth Unit: R3000
JBL R4500 Bluetooth Unit: JBL R4500

Your Choice of Speakers

2 x 6.5" Rockford Fosgate P1650 Speakers
2 x 6x9" Rockford Fosgate P1692 Speakers
4 Rockford Speakers: 2 x 6.5"+ 2 x 5.25"
2 x 6.5" LED Rockford Speakers- 16 Colors

Your Choice of Windscreen

5" (Clear / Smoked)
10" (Clear/Smoked)

Additional Accessories

Smooth/Vented Front Look
Rockford Fosgate Punch PBR400x4 Amp
Handlebar Remote Control
Windshield Trim
Storage Pouch
Fixed/Adjustable Wind Deflectors
Smartphone Holder
Klock Werks Flare Windshield

Stereo Options

Includes Infinity R3000

The Infinity digital media receiver features a compact, weather-resistant design that stands up to sun, spray, and rough weather to make for a great stereo in your Reckless batwing fairing. This stereo includes AM, FM, and WB radio, as well as USB and auxiliary inputs so you can listen to tunes stored on a thumb drive or portable music player. And you can stream music or podcasts from your smartphone or other device using the latest Bluetooth® 5.0 technology.

The R3000 includes a pair of preamp outputs, so you can expand your system with a marine amp or powered sub. The easy-to-read LED display shows you what you're listening to with just a glance, while the IPX7-rated face and controls will stand up to the elements for seasons to come.

Marine digital media receiver (does not play CDs)
Built-in amplifier (20 watts RMS/55 peak x 4 channels, 2-ohm stable)
4" black and white LCD screen
Built-in Bluetooth® 5.0 for music streaming
AM/FM/Weather Band tuner
IPX7-rated watertight, UV-resistant front panel
Inputs: rear AUX and USB ports
Outputs: 2-channel preamp outputs
MFR # INFR3000

Rockford Bluetooth Unit (PMX-1):

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready design also provides protection against water, dust, and UV rays.

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

Features:

Wet bonded 2.3" Full Dot Matrix LCD Display
9H Tempered Glass Screen
A2DP and AVRCP Bluetooth® Wireless Streaming
AUX and USB Inputs with USB Charging
Compatible with PMX-BTUR Steering Wheel Remote
Independent Subwoofer Level Control
7-Band Graphic EQ + PEQ
Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
Voltage gauge with Low voltage Warning
AM / FM / WB Tuner
Multi Region Radio Frequencies
IPX6 Marine Grade Front Panel
FCC, CE and EN60945 Certified
2 Year Warranty

Rockford Bluetooth Unit PMX-2:

The PMX-2 is an AM/FM/WP tuner and compact digital media receiver with a 2.7" full color display.

The PMX-2 compact digital media receiver is designed for marine and motorsports applications.

The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio streaming with album art support this unit becomes a true command center of any system.

Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.

Features:

ISO8846/SAE J1171 Ignition Protection Certified
Pandora Internet Radio
A2DP and AVRCP Bluetooth Wireless Streaming
FCC, CE, IC, and C-Tick Certified
Multi Region Radio Frequencies
Low Voltage Warning Alert
AUX and USB Inputs with USB Charging
On Board Punch EQ Control
iPod playback with on-screen display
Independent Subwoofer Level Control
Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
IPX6 Marine Grade
7-Band Graphic EQ
2.7" full color display w/ auto dimming backlighting
AM / FM / WB Tuner
Zone Control: 1 Zone / 1 Source (F/R or Sub)
*Antenna not included
2 Year Warranty

Rockford Bluetooth Unit PMX-3:

The PMX-3 is a ground up designed digital media receiver for marine and motorsports applications with full color 2.7" TFT display. This unit not only has the functionality you desire such as a custom designed GUI interface and menu system built with "ease of use" in mind, but also features SiriusXM tuner compatibility, Pandora radio control via USB or Bluetooth and full iPhone support with folder browsing capability.

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7" full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio streaming with album art support, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

Features:

2.7" Full color Thin Film Transistor display
SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
Integrated voltage gauge w/ low voltage alert
Wired remote ready (up to 3 remotes)
Two-piece mounting system to secure panel to mounting surface
Front Panel Sub Control
Upgradeable Firmware and Bluetooth Software via USB
IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects
ASTM: B117 Salt Fog & D4329 UV Exposure Tested
Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
Internal power amplifier 4x45W 2Ω stable
Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
Made for iPhone apple certified
Bluetooth streaming audio (A2DP) protocol version 1.4 installed
Rear USB With 1A Charging Only
Rear AUX-In (L/R)
Simple Secure Pairing (SSP)
Display album art from connected iPhones on the radio display
Folder browsing via BT connected iPhones
Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
Selectable high pass and low pass crossover points for each zone
Selectable crossover slopes of 12dB or 24 dB for each zone
Adjustable input gain for each source
Waterproof Rotary Encoder Volume Control
Tactile convex buttons for easy identification
White LED Button Illumination
Wired and front panel illumination control
Wet Bonded Display
Epoxy coated circuit board for water resistance
External trigger input to activate reverse camera mode
Direct composite video input connection
Day/Night display mode
2 Year Warranty

Speaker Options

Rockford Fosgate 6.5" P1650 Speakers

The 6.5" Rockford Fosgate speakers are perfect for the rider looking to get great levels of sound without breaking the bank. Experience the signature VAST surround technique to expand the surface area of the speaker cone, giving you better bass response than comparable speakers. But no matter how heavy the bass gets, the P1650's dome tweeter provides clear, extended highs for a rich full-range sound.

Rockford Fosgate 6.5in P1650 Single Speaker

Product highlights

2-way 6-1/2" speakers (pair)
Injection-molded mineral-filled polypropylene woofer
Santoprene rubber surround
3/4" treated PEI dome tweeter
Vertical Attach Surround Technique (VAST™) increases cone area
Power range: 5-55 watts RMS (110 watts peak power)
Frequency response: 45-20,000 Hz
Sensitivity: 88 dB
Top-mount depth: 2-5/16"
Grilles included
Warranty: 1 year

Rockford Fosgate 6x9" P1692 Speakers

The 6x9" speakers are made for the bass lover looking for the highest levels of deep bass paired with strong levels of sound to make their rides perfect. The 6x9" speakers feature a responsive polypropylene cone and butyl rubber surround that'll stand up to hours of high-volume jams. Rockford Fosgate uses a new technique to attach the surround to the cone that yields up to 25% more cone area, for fuller sound and stronger performance. The dome tweeter provides clear, extended highs that can hold their own when the bass gets heavy.

Product highlights:

2-way 6"x9" speakers (pair)
mineral-filled polypropylene woofer
butyl rubber surround
3/4" polyetherimide (PEI) dome tweeter
grilles included
Vertical Attach Surround Technique (VAST™) increases cone area
power range: 6-75 watts RMS (150 watts peak power)
frequency response: 60-22,000 Hz
sensitivity: 91 dB
top-mount depth: 3-1/16"
warranty: 1 year

Rockford Fosgate 6.5" P1650 Speakers + Rockford 5.25" P152 Speakers

A combination of Rockford Fosgate speakers featuring 2 x 6.5" speakers on the outsides of the fairing, and 2 x 5.25" speakers on the inside. This pairing features a combination of rich bass from the 6.5" speakers as well as crisp highs provided by the 5.25" speakers. The ultimate speaker pairing for the highest level of sound in the classic fairing.

Complete Fairing shown with 2 X 6.5 inch Speaker and 2 X 5.25 Inch Speakers and windshield

Rockford Fosgate M1 6.5” Color Optix™ Marine 2-Way Speakers

The M1-65 Color Optix™ 2-way 6.5” speakers deliver loud, clear, accurate sound, and light the way for your journey! The speakers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

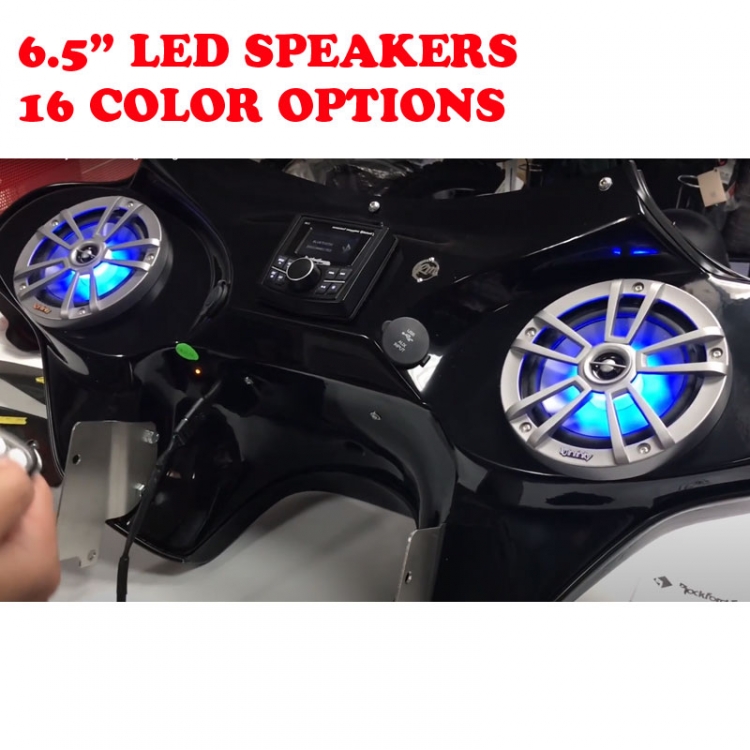

2 x 6.5inch LED speakers and stereo installed on fairing

Midrange Size: (Nominal Diameter) 6.5"
Power Handling: (RMS) 75 Watts RMS
300 Watts Peak
Speaker Type: 2-way Coax
Nominal Impedance: (Ohms) 4-Ohm
Midrange Mounting Depth: 2.49" (63.18 mm)
Tweeter Size: 1" (25.4 mm)

Windshields

The fairing windshield will serve as additional protection against the wind and prevent wind buffeting from affecting a riders head.

2 fairings shown with different size of windshields; 5inch and 10 inch with Chrome slotted Trim

Windshields are offered in a clear or tinted finish in 5" or 10". The average rider will look over the 5" windshield, and through the 10" windshield. Various windshield sizes can be used on the fairing by easily removing the windshield from the fairing and replacing it with a new windshield. Windshields can be ordered separately to ensure the possibility of having any size or color. Taller windshields will provide riders with more protection from the wind, while shorter windshields provide a more sleek look to the motorcycle.

Fairing Front Look

The front of the batwing fairing is offered in two designs, the traditional smooth front look, or the simulated vent front look. Neither style will alter the performance of the fairing as they are only cosmetic additions. The smooth front look gives the appearance of a more classic fairing, while the simulated vent gives a more contemporary style seen less frequently. Please note that the vented front look is only cosmetic and does not provide a functioning air vent.

Fairing Front Look showing difference between Smooth look and Vented look

Amplifier

The Reckless Batwing fairing is offered with an optional Rockford Fosgate PBR400X4D amplifier to further enhance your listening experience. This amplifier is a full range 4-channel amplifier that is compact enough to come pre-installed inside of the fairing, but packs a punch with 400 Watts RMS power. The amplifier is recommended for riders who are often cruising at highway speeds with passengers or loud, aftermarket exhausts. Or, for those who are after a more powerful stereo system.

Rockford Fosgate Amplifier

4-channel car amplifier
50 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
CTA-2006 compliant
Boosted Rail amp technology
C.L.E.A.N. gain setup system includes clip lights and link to Rockford Fosgate's setup tones
dimensions: 6-3/4"W x 1-9/16"H x 4-1/4"D

Handlebar Remote Control

The Bluetooth 4.0 Smartphone Ready Handlebar Mounted Remote Control quickly and easily pairs with your mobile device using a simple one-button pairing control. Once paired to your mobile device, control any Bluetooth equipped source unit with the remote, all while keeping your phone safe in your pocket. Functionality includes Skip Song/Previous Song/Pause/Play/Volume Up/Volume Down. The perfect solution for riders to control their music all from the convenience of their handlebars.

Our Bluetooth controller is made to pair with your phone/bluetooth device to control all bluetooth audio functions being transmitted directly from the phone/bluetooth device. The remote can also be paired directly to the Rockford Fosgate PMX-1 stereo to control all other non-bluetooth audio directly from the stereo including AM/FM radio. The Rockford Fosgate PMX 2 and PMX 3 cannot be paired directly to the handlebar control and will require the controller to be paired to your phone/bluetooth device to control only the bluetooth audio.

BLUETOOTH:
4.0 Smart Ready
Android 5.0+
Apple iOS 8.0+
Bluetooth Universal Remote
BLUETOOTH RANGE:
10 Meters (32 Feet)
POWER:
Battery Operated (1x CR2032)
1 Year Warranty
2.75" x 1-7/8" x 1-1/4"
(7 mm x 4.8 mm x 3.2 mm)

Windshield Trim

The windshield trim is an additional accessory offered for the batwing fairings which is meant to serve as a cosmetic addition to the front end of the fairing where the windshield insert is located.

Storage Tri Pouch

The storage tri-pouch is an additional accessory meant to add additional storage to the fairing. This pouch will mount using the same bolts as the windshield.

Adds convenient extra storage space to the inside of your batwing fairing
Three easily accessible individual storage pockets
Pockets large enough to accommodate items such as iPods, cell phones or any other gadgets you want at your fingertips
Constructed of PVC leather
Middle pocket measures 9-1/4" W x 2-3/4" H x 3" D
Quick and easy installation on your batwing fairing

Wind Deflectors

Wind deflectors are designed to protect a rider from wind buffeting and fatigue by protecting the lower half of the body with the bolt on deflectors made to integrate onto the lower half of the batwing fairing.

two images showing difference between Fixed wind deflectors and Adjustable wind deflectors

Optional RAM Smartphone Holder

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
CLAMP RANGE: .5" - 1.25" diameter
SOCKET TO SOCKET LENGTH: 1.75"
BALL SIZE: B Size (1")
PACKAGING TYPE: Poly Bag
WEIGHT: 0.8 lb
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

Optional RAM Smartphone Holder w/ Charger

Klock Werks Flare Windshield

The Klock Werks flare windshield is an additional windshield which will be included with the fairing. This windshield has a flip towards the top which is meant to deflect additional wind at high speeds. This will further protect riders from wind buffeting.

5 different sizes of windshields shown; 3.5in, 6.5in, 8.5in, 10.5in and 11.5in

Application Chart

Road King Models (94+)	OEM Windshield Mounts Required
Softail Deluxe Models (94+)	OEM Windshield Mounts Required
Heritage Softail Models (94+)	OEM Windshield Mounts Required
Freewheeler (94+)	OEM Windshield Mounts Required
Switchback (12+)	OEM Windshield Mounts Required
Fatboy/Fatboy Lo (94-17)	OEM Windshield Mounts Required
Softail Slim (11+)	OEM Windshield Mounts Required
VTX 1300 S/R Covered Forks (03-09)	Requires Covered Forks
VTX 1300 C Exposed Forks (01-09)	Requires Exposed Forks
VTX 1800 C/S/R (01-09) Exposed/Inverted Forks	Requires Exposed Forks
VTX 1800 C/S/R (01-09) Covered Forks	Requires Covered Forks
Honda Shadow 750 Ace Deluxe Covered Forks	If Tach/Speedo is located on handlebars relocation is required
Honda Shadow 1100 Sabre	All Hardware Included - If Tach/Speedo is on handlebars relocation is required
Nomad 1500 (99-04)	OEM Windshield Mounts Required
Nomad 1600 (05-08)	OEM Windshield Mounts Required
Nomad 1700 (09-Present)	OEM Windshield Mounts Required
Vulcan 1700 Classic & LT	OEM Windshield Mounts Required
Vulcan 900 Classic LT	OEM Windshield Mounts Required
Vulcan 1600 Classic (03-08)	Nomad 1600 Windshield Mounts Required
Vulcan 2000 Classic	OEM Windshield Mounts Required - (Not compatible with large headlight nacelle)
Vulcan 2000 Classic LT	OEM Windshield Mounts Required (Not compatible with large headlight nacelle)
Vulcan 1500 Classic FI	Will not fit Carb Version
Roadstar Silverado (99-14)	OEM Windshield Mounts Required - STR-5VN03-40-00
Stratoliner (Tri-Pouch Not Compatible)	OEM STR-2C503-40-00 Windshield Mounts Required - Fairing Only Available in 4x5.25" Speakers and Smooth Front
V-Star 650 Classic	Requires pu2321-0072 (This will be included) (+$149)
V-Star 1100 Classic	Requires pu2321-0072 (This will be included) (+$149)
V-Star 1300 Classic (Tri-Pouch Not Compatible)	Requires original Yamaha TOURER windshield mounts (sold separately)
Royal Star (94-00)	OEM Windshield Mounts Required
Royal Star (04+)	OEM Windshield Mounts Required
Stryker	Requires (P/N MEM9953) (This will be included)
C90	C90 Light Bar Required
C90 Boss	All Hardware Included
C90 T	All Hardware Included
C50	OEM Windshield Mounts Required from C50T
Suzuki Intruder 1500 LC (98-04)	OEM Windshield Mounts Required
Rocket 3 Touring	OEM Windshield Mounts Required
