Purchase Corbin HD-XL-CU-4-GL Gunfighter & Lady Seat for Harley Sportster Custom '04-'06

SKU: CBN-HD-XL-CU-4-GL
MPN: HD-XL-CU-4-GL
Corbin HD-XL-CU-4-GL Gunfighter & Lady Seat for Harley Sportster Custom '04-'06

Name: Corbin HD-XL-CU-4-GL Gunfighter & Lady Seat for Harley Sportster Custom '04-'06
Brand: Corbin Seats
SKU: CBN-HD-XL-CU-4-GL
Price: 493 USD
Availability: InStock

$493.00

Custom Made for you. Ships in 2-4 weeks

Seating Panels:

Side Panels:

Welts:

Stitch Color:

Logo Color:

Special Notes:

Qty

Corbin's HD-XL-CU-4-GL Gunfighter & Lady Seat is made specifically for Harley-Davidson Sportster Custom (2004-2006).

Features:

Rider seating: 11.5" wide x 15.5" long
Passenger: 6.75" wide x 10.5" long
Seat Height: Approx 27"
Corbin Gunfighter & Lady saddle for 2004-2006 Harley-Davidson Sportster.
Installation is simple with a tongue in the front and a single screw into your fender at the rear. Seat tab uses the stock location in your fender. For tool-free installation, we offer a chromed billet thumbscrew that also makes a very clean install.

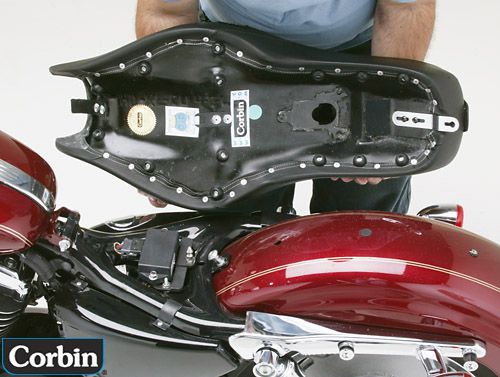

a person is hodling Gunfighter seat showing rear side MPN printed and mounting brackets pre installed

To adjust backrest position, simply fold down the spring loaded hardware and install the appropriate set screw. There is a special opening in the cover designed specifically for this purpose. Adjustment hole is covered with a leather flap that matches your saddle design.

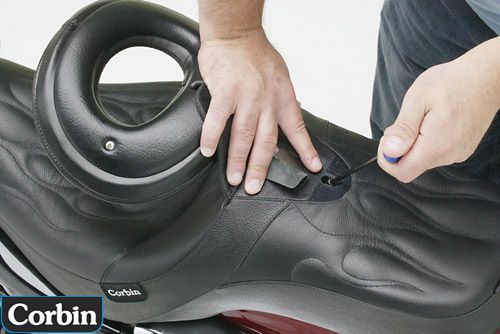

a person is showing how to install the backrest in the adjustment hole

Will not work with permanent mount sissy bar. Detachable sissy bar works fine.
Saddle includes two different brackets to allow fitment on the Bobtail fender.
Corbin saddles (with very few exceptions) include GENUINE LEATHER SEATING to provide a luxurious look and feel.

This saddle model provides clean, flowing lines with comfort built-in for two. Gunfighter & Lady is designed for excellent back support and proper weight distribution to provide you and a passenger with day long comfort. We've engineered the seating platform to provide more lateral support and relieve the centralized pressure caused by the stock saddle. You and a passenger can spend many happy hours on your Sportster with this seat.

Entire saddle is built up with our exclusive Comfort Cell® foam to provide a firm supportive ride that lasts. Our closed cell foam is nearly twice as firm as stock to give you long range comfort. Comfort Cell® also allows us to provide a sculpted postition that fits you ergonomically providing more square inches of support. Naturally, it is designed to work with the Corbin removable backrest in both the rider and passenger positions. Corbin's rests are fully adjustable to provide a tailored fit to your posture.

Our backrests install easily with a single set screw locking them into place in the saddle. Internal hardware supports the rest without the use of unsightly external brackets. Our Gunfighter & Lady model has a special hardware built into the rider's position that allows it to be positioned fore and aft to suit your stature and will fold down to ease mounting the bike. Spring loaded hardware returns the backrest to the upright position after you've swung your leg over. Adjust the position of backrest easily with a set screw accessed from the top (see special notes below).

Gunfighter & Lady is the two-up evolution of our world famous Gunfighter design. Nice, clean lines that flow with the shape of the tank yet give enhanced comfort through ergonomic shaping. Sculpted seating supports your posterior, but is shaped narrower in the nose to allow good ground reach. Corbin's rigid FibertechTM basepan fits perfectly to the tank and all contours of the chassis and fender. Installation is a snap using a single screw into your fender. For tool free installation, use one of our chromed billet thumbscrews (#ACST).

Saddle will use a single backrest transferred front to back as needed or you can order two for full time use. We have a variety of styles available to suit your taste, but we recommend the #02-S model Ovalbac® as shown here. For an extra custom touch, we offer a variety of finishing plate options for the rear of the backrest. Standard finishing plate is a leather look ABS, though we also offer a Carbon Fiber look, Aluminum look or primer (for custom painting). If you really want to dress things up, for a little extra we can provide a plate prepainted Gloss Black or in Chromed steel.

As with all Corbin saddles, we include genuine leather seating in your choice of colors and styles. Leather seating is great because of its durability and ability to breathe with your body. Over time, it will break in along with the foam shape providing a personalized fit to your posture. Coordinated vinyl side panels complete the look and keep the saddle shape tight. Seating areas are finished off with a tasteful Wildfire stitch pattern.

LEATHER COLORS

VINYL COLORS

Samples available on request. Don't hesitate to contact us.

It all started with a Norton Atlas over 50 years ago Now the Corbin name is synonymous with Quality, Hand Crafted motorcycle saddles worldwide. Hand built with pride in the USA using proprietary, purpose built materials and patented manufacturing processes. Unique, cutting edge designs that provide the perfect blend of form and function.

Over 1,400 part numbers means they offer more applications across more brands and models than any other motorcycle seat maker. Trends come and go, but quality never goes out of style.

Corbin offers more than 70 color and texture options for your custom build motorcycle seat at no additional charge. Corbin saddles include genuine leather seating for a truly luxurious ride that will last for years to come. Build your seat any way you like from mild to wild.

Corbin is proud to support the Championship winning team of Jared Mess and join forces with Memphis Shades to field up and comer Cole Zabala in the 2022 season.

Specifications:

UNIQUE TECHNOLOGY: The design and manufacture of Corbin products is so unique that Mike Corbin himself holds more than 60 United States Patents! From the process itself to new innovations like the Corbin Glovebox, you can count on highly functional and unique products that work. Corbin products are manufactured under one or more of the following US Patents: 6,848,156 B2; 6,729,516 B2; D 489,540S; 6,655,740 B1; 6,422,648 B1; 5,544,937; 5,608,957; 4,953,911; D545,073S & 6,971,714 B1.

FIBERTECH BASEPAN: A purpose built, hybrid material that provides a firm foundation to support the carefully designed ergonomics of the Corbin saddle. Provides a precision fit to every arc and contour of the machine and rides on rubber bumpers to protect your paint. We always design our basepans as flat as possible so bumps or odd shapes don't telegraph through the foam to your body.

COMFORT CELL FOAM: The heart of the Corbin saddle! Our exclusive, purpose built foam material, called Comfort Cell, was created to provide a firm, resilient ride that doesn't break down. This means it will support you for long days on the road. Over time, Comfort Cell will break in to provide a personalized fit to your posture and even greater comfort

ERGONOMIC SHAPING: A major part of the design criteria of the Corbin saddle is the Ergonomic shape. This means the saddle's foam shape is designed to emulate the curves of the human body. This provides more square inches of body contact and helps to eliminate hot spots. This shaping also neutralizes the seating platform to help curb sliding in the saddle which reduces fatigue. In a nutshell... more comfort for a longer ride!

PATENTED MANUFACTURING TECHNOLOGY: Always an innovator, Mike Corbin invented Integrated Molding technology which is now the process by which all Corbin saddles are made. This process allows extremely tight tolerances and creates a chemical bond between the foam and base material.

GENUINE LEATHER: We use leather in all panels of the seat that contact your body. This provides a luxurious ride that breathes with your body. Leather will also break in along with the foam shape to support the personalized fit. Available in a wide range of textures and styles to suit your taste.
