Purchase Corbin HD-SR-H Hollywood Solo Seat for Harley V-Rod Street-Rod (2006-2007)

SKU: CBN-HD-SR-H
MPN: HD-SR-H
Corbin HD-SR-H Hollywood Solo Seat for Harley V-Rod Street-Rod (2006-2007)

Name: Corbin HD-SR-H Hollywood Solo Seat for Harley V-Rod Street-Rod (2006-2007)
Brand: Corbin Seats
SKU: CBN-HD-SR-H
Price: 517 USD
Availability: InStock

$517.00

Custom Made for you. Ships in 2-4 weeks

Seating Panels:

Side Panels:

Logo Color:

Special Notes:

Qty

Corbin's HD-SR-H Hollywood Solo Seat is made specifically for Harley-Davidson V-Rod Street-Rod (2006-2007).

Features:

Rider seating (standard): 12.5" wide x 14" long
Rider seating (Close) (Sold separately): 11.5" wide x 12.5" long
Passenger(Sold separately): 10" wide x 10" long
Approx seat height: 31"
Corbin Hollywood Solo for Harley-Davidson Streetrod.
Due to the shaping of our basepan and working around the components on the fender, Corbin components do not interchange with the stock pieces!
Installation: Our front and rear saddles come with all hardware required for immediate installation right out of the box. Our included latch bracket installs with common hand tools and keeps the hinge mount system with the addition of a lock to secure your investment in a quality saddle.

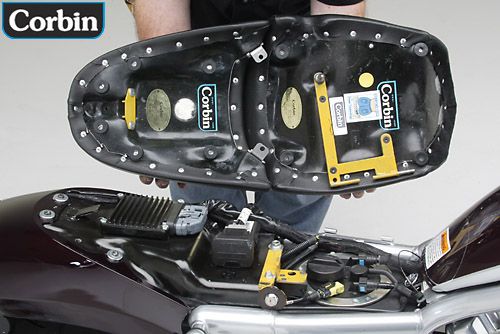

a person is holding front and rear seat showing rear side with mounting bracket pre-installed

Front saddle comes with a hinge/latch bracket preinstalled on the saddle and a key lock bracket you mount to existing locations on your chassis. Once the bracket is installed, the Corbin saddle will hinge just like your stock seat but with the addition of a locking latch.

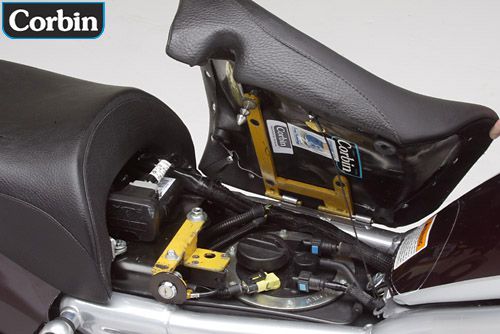

front seat showing keylock bracket pre-installed

Rear saddle uses the tongue in the rear and two mounting points in the front that use stock bolts. Just slide the saddle into place, slip fiber washers under the mounting tabs and secure with two bolts. Simple!

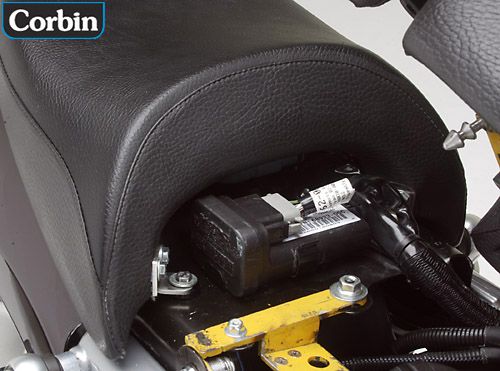

rear seat's tongue shown slipped under the mounting tabs and secured with two bolts

Corbin seats (with very few exceptions) include Genuine Leather Seating to provide a luxurious look and feel.

Part of a series of modular seating components for the H-D Street Rod. Standard Hollywood Solo features a roomier seating position moved back approximately two inches from the stock seating posture while our Close version keeps the rider seated closer to the bars for an easier reach. Both are sculpted for an ergonomic fit to the human body for better weight distribution and support. Using our exclusive high density Comfort Cell foam allows a low profile that will support you for hours. Corbin front saddle models work with a coordinating passenger pillion.

We offer two models of the Hollywood Solo; the CLOSE model and the Standard model. Close model is designed for riders who want an easy reach to the bars and pavement. If you feel cramped by the position of the stock seat, then the Corbin Standard version is for you with seating 2" further from the bars. The Close Hollywood Solo has a seat pocket placed similar to the stock seat with a slightly lower platform.

Corbin's passenger pillion accepts a removable backrest for added copilot comfort and security. Normally we wouldn't built backrest support into a low profile style like this, but the ignition module on the fender required a slightly higher seating platform which left us room for the hardware. Corbin backrest installs with a single screw under the saddle and adjusts easily to passenger's profile. Like the saddles themselves, our backrest is sculpted to fit the human body for maximum weight distribution and comfort.

Notice how the Corbin saddle maintains a smooth, low profile line even with backrest hardware inside. While developing this setup, we engineered our basepan to mold over the electronic components on the fender in a much smoother and lower fashion which gave us more flexibility of design. Our Fibertech base material provides a rigid platform to support the foam and assure the carefully designed ergonomic shaping remains intact. It also allows us to build a very close fit to the fender and chassis for a custom look. Because of this close fit, we have a pillion pad specially designed to work with the HD fender baseplate / backrest if you have it.

All components include genuine leather seating panels in your choice of colors and styles. On this page we show a plain black model that gives a subtle and classy appearance and also one covered completely in our grey faux snakeskin material for a bit more radical look. Leather provides a luxurious ride that breathes with your body and will break in along with the foam shape for a personalized fit. Naturally, all material options available for your saddle(s) are also available for your Corbin backrest.

Notice how the sculpted shaping of the Corbin components fit the human body for good support. Not only does this do a better job of dispersing your weight, but it helps to eliminate hot spots. Our neutralized seating position helps to eliminate sliding in the saddle which in turn reduces fatigue. We incorporate a key lock mounting system into the Hollywood Solo to help secure your sadde investment against thieves while maintaining simple operation at fuel stops. Bracket installation is simple with common hand tools.

Corbin's Ovalbac series backrests have removable finishing plates for an added custom touch. Our standar plate is a leather look ABS, but we can also supply a Carbon-Fiber or Aluminum look. For just a little extra we can even supply one prepainted gloss black or a chromed steel model. If you'd like to add a bit of storage capacity, we offer a new Glovebox design that bolts up in place of the finishing plate. Providing enough storage for essentials like bottled water, spare gloves, cell phones, pda, maps and keys, the Glovebox is very handy. Currently available in primer or Gloss black and soon to be available prepainted to match your Street Rod's paint as shown.

Notice how closely the Corbin pillion fits and emulates the shaping of the HD fender. Because of this we will be offering two models of the passenger pillion; one fits directly with the fender as shown, the other fits with the sissybar / backrest assembly available from Harley-Davidson. Either will work perfectly with the Corbin Hollywood Solo front, but not with the stock components. Due to the size of the "box" built into the stock basepan to cover the ignition module, we were unable to make our saddles work with the stock components... sorry.

LEATHER COLORS

VINYL COLORS

Samples available on request. Don't hesitate to contact us.

It all started with a Norton Atlas over 50 years ago Now the Corbin name is synonymous with Quality, Hand Crafted motorcycle saddles worldwide. Hand built with pride in the USA using proprietary, purpose built materials and patented manufacturing processes. Unique, cutting edge designs that provide the perfect blend of form and function.

Over 1,400 part numbers means they offer more applications across more brands and models than any other motorcycle seat maker. Trends come and go, but quality never goes out of style.

Corbin offers more than 70 color and texture options for your custom build motorcycle seat at no additional charge. Corbin saddles include genuine leather seating for a truly luxurious ride that will last for years to come. Build your seat any way you like from mild to wild.

Corbin is proud to support the Championship winning team of Jared Mess and join forces with Memphis Shades to field up and comer Cole Zabala in the 2022 season.

Specifications:

UNIQUE TECHNOLOGY: The design and manufacture of Corbin products is so unique that Mike Corbin himself holds more than 60 United States Patents! From the process itself to new innovations like the Corbin Glovebox, you can count on highly functional and unique products that work. Corbin products are manufactured under one or more of the following US Patents: 6,848,156 B2; 6,729,516 B2; D 489,540S; 6,655,740 B1; 6,422,648 B1; 5,544,937; 5,608,957; 4,953,911; D545,073S & 6,971,714 B1.

FIBERTECH BASEPAN: A purpose built, hybrid material that provides a firm foundation to support the carefully designed ergonomics of the Corbin saddle. Provides a precision fit to every arc and contour of the machine and rides on rubber bumpers to protect your paint. We always design our basepans as flat as possible so bumps or odd shapes don't telegraph through the foam to your body.

COMFORT CELL FOAM: The heart of the Corbin saddle! Our exclusive, purpose built foam material, called Comfort Cell, was created to provide a firm, resilient ride that doesn't break down. This means it will support you for long days on the road. Over time, Comfort Cell will break in to provide a personalized fit to your posture and even greater comfort

ERGONOMIC SHAPING: A major part of the design criteria of the Corbin saddle is the Ergonomic shape. This means the saddle's foam shape is designed to emulate the curves of the human body. This provides more square inches of body contact and helps to eliminate hot spots. This shaping also neutralizes the seating platform to help curb sliding in the saddle which reduces fatigue. In a nutshell... more comfort for a longer ride!

PATENTED MANUFACTURING TECHNOLOGY: Always an innovator, Mike Corbin invented Integrated Molding technology which is now the process by which all Corbin saddles are made. This process allows extremely tight tolerances and creates a chemical bond between the foam and base material.

GENUINE LEATHER: We use leather in all panels of the seat that contact your body. This provides a luxurious ride that breathes with your body. Leather will also break in along with the foam shape to support the personalized fit. Available in a wide range of textures and styles to suit your taste.
