Aurora's KSE3-USA Superlight Kit is made specifically for KTM EXC 150/250/300 & EXC-F 250/350/450/500 (2017-2024).
Features:
- Lightweight CNC tower at just 848 grams.
- Two RAM© mounts for digital devices or a minimal cockpit.
- Up to eight lighting options, from street-legal to off-road.
- Puig© 4mm PET screen with adjustable brackets for wind protection.
- Screen Safety System moves screen on impact; adjustable inclination.
- Pre-assembled kit with 24/7 support.
- Unique serial numbers for traceability.
- 3D-printed air scoop for rectifier cooling.

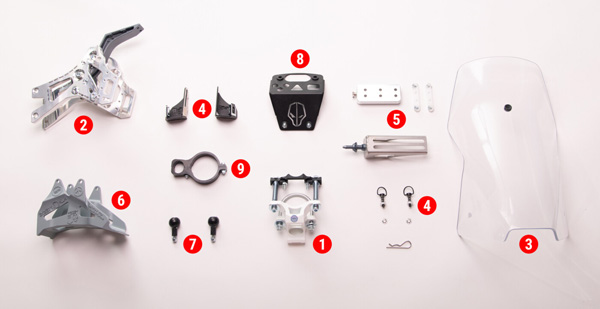

Includes:
- Aluminum Billet head clamp
- Aluminum Billet rally tower
- Adjustable PET rally screen
- 1/4 turn bolt fasteners and Dzus receptors
- Rectifier bracket and extension cables
- Ultra hard 3D printed resin air scoop
- Two RAM® ball mounts
- OEM Speedo relocation bracket
- CNC Polymer Cable Guide

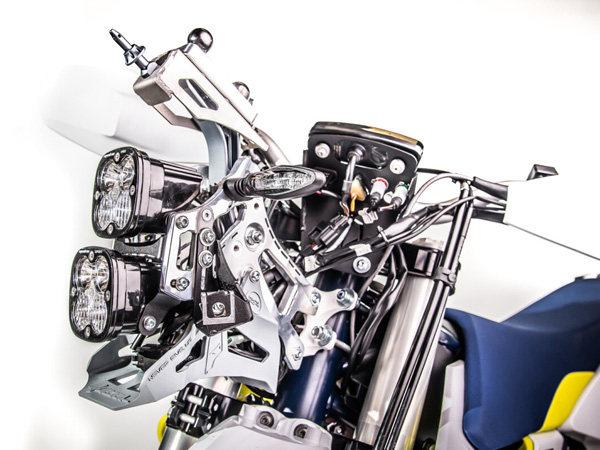

Front Light Options
Notes: All light combinations come with a dedicated mounting bracket, harness and anti glare foam. If you are using your own lights you would either have to manufacture a bracket yourself or you can contact us to purchase the bracket/harness if we produce one for your lights.

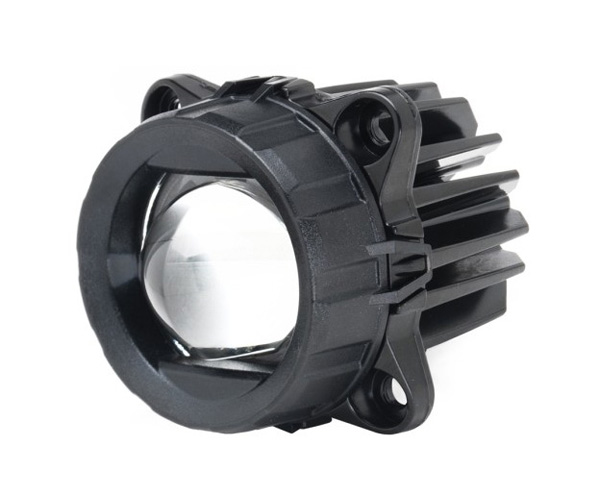

Hella LED M60:
- A specially developed lens system for even illumination provides exactly the safety and reliability needed on the road and off-road.
- The specially developed lens system by Hella focuses the light of the LEDs and distributes it optimally in the field of application.
- The products are also durable and resistant to vibration, dirt and water.
- Easy to switch between halogen and LED technology
- Lamp type: LED - Number of LEDs: 4 - with carrier frame/electromagnetic (total EMV)
- Compliance brand: ECE-R113.01/ECE-R10/CCC, type of protection. (IP Code): 6K9K, 6K7
- Case material: aluminium; scatterer material: ice/glass
Hella LED M60 Hi Beam:
Features:
- Fitting Position: Left, Right
- Lamp Type: LED
- Mounting Type: Screw Connection
- Fastening Type: Four-point mounting
- Light Design: Symmetric, LED
- Voltage [V]: 12
- Height [mm]: 68
- Width [mm]: 68
- Depth [mm]: 90
- Fitting Depth [mm]: 45
- Light Function: with high beam (LED)
- Number of light functions: 1
- Test Mark: CCC, ECE-R113, ECE-R10, E4 0313, E12 0074, ECE-R149
- Reference number: 12,5
- Housing Color: Black
- Lens Color: Crystal clear
- Frame Color: Black
- Shape: round
- Housing Type: Metal Housing
- Diffusing Lens Type: Clear diffusing lens
- Supplementary Article / Supplementary Info Info 2: without carrier frame, Electromagnetic Compatibility (EMC)
- Supplementary Article / Supplementary Info: with LED
- Assy./disassy. by qualified personnel required!
Baja Squadron Sport:
Light up the night with Squadron Pro LED light pair from Baja Designs. Don't let the compact size of these 3" light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 4,095 lumens. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
Comes with:
- (2x) Squadron Pro Light Pods
- (1x) Wiring Harness 640117
- All Necessary Mounting Hardware
Baja Designs Squadron Sport:
Squadron® Sport packs 3,150 Lumens at 26 watts that will truly annihilate the night.
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Baja Designs Squadron Pro:
Squadron® Pro packs 4,900 Lumens at 40 watts that will truly annihilate the night.
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Techonology

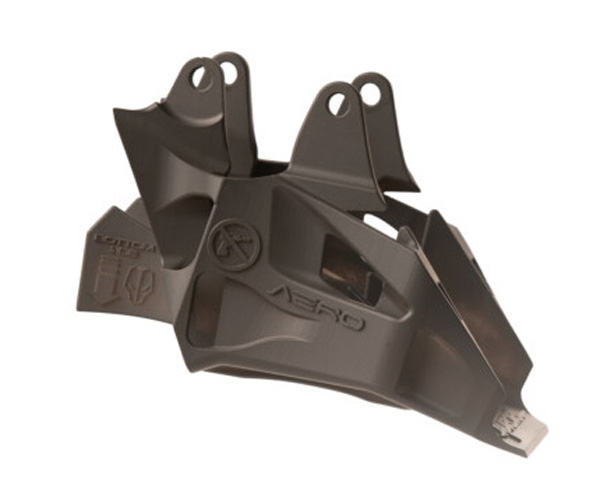

High-impact resin air scoop protects cables and cools the rectifier.
Special inlets and outlets create a vortex effect for maximum cooling and extended rectifier life.
Screen Safety System
Patent-pending design allows the screen to move forward on impact, reducing injury risk.
In a high-impact crash, the screen detaches to minimize force transfer to the rider.
Adjustable brackets let users choose automatic sliding or predefined positions.
Manufacturing
Superlight tower weighs 848g, with an 'enduro' mode reducing it to 700g.
Variable thickness design maximizes strength while keeping weight minimal.
Tested under extreme conditions with high-precision accelerometer data.

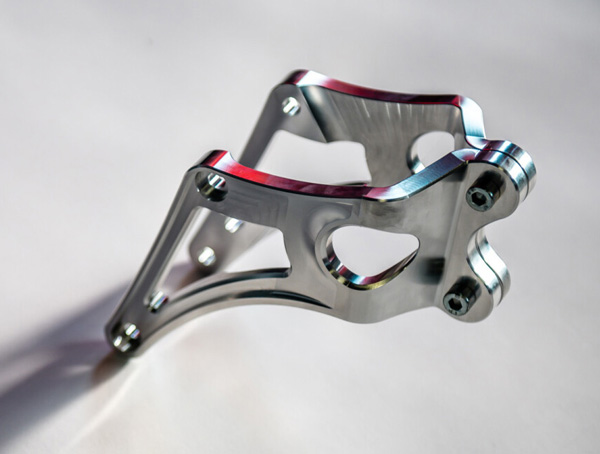

The Legendary Head Clamp
Machined from solid aluminum with special spacers and a chro-moly U-bolt for maximum durability.
Proven zero failures since 2016 in all conditions, with a lifetime warranty.
Crashing
Stainless steel screen brackets with a 3-point mounting system bend on impact, allowing rotation to absorb force.
Compact tower design and energy-absorbing materials minimize damage and protect equipment in a crash.

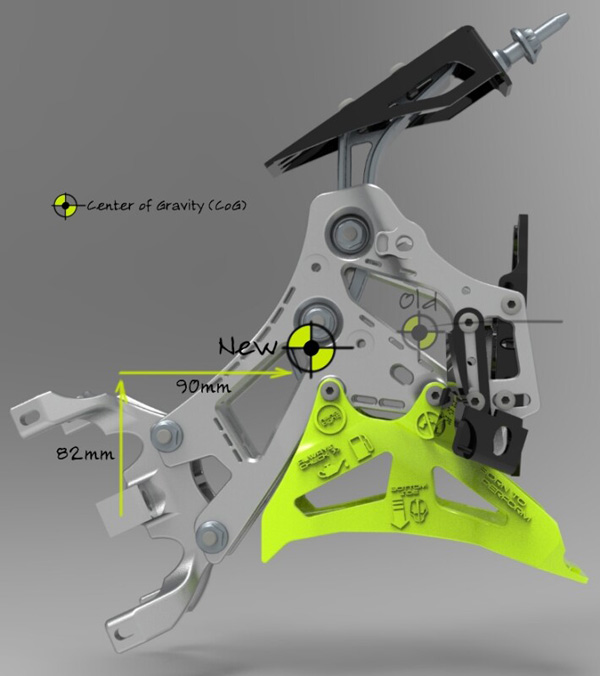

Weightless
The aluminum tower weighs just 840 grams, making it the lightest 3D CNC tower from Aurora.
Designed using extensive fatigue data, it remains structurally stable while keeping the center of gravity close to the headstock for minimal impact on handling.
